Taylor Diagrams: Min & Max Temperatures

Observed maximum and minimum temperature and precipitation is taken from CRU2.1 data set. NCEP/NCAR Reanalysis-II data is used as a proxy for observed 500 hPa height. Standard deviations are normalized by the observed standard deviation. Validation data are bi-linearly interpolated to the model native grid. To view a full image in a new browser, click on a thumbnail image.

Color scheme:
blue: ISUMM5
orange: ECPRSM
purple: PNLMM5
yellow: CRCM

Symbol scheme:
dot: Experiment0.0
square: Experiment0.1
star: Experiment0.2

Example: Blue Dot is ISUMM5-Experiment0.0
Note: Black Triangle represents observations




Maximum Temperature
Minimum Temperature

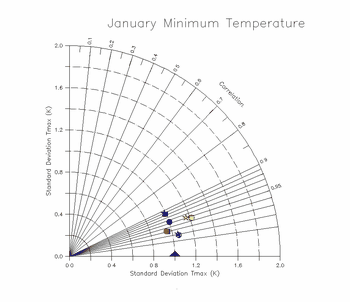

January
February
March

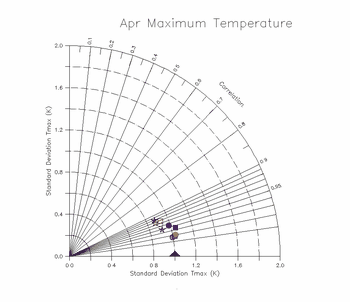

April
May

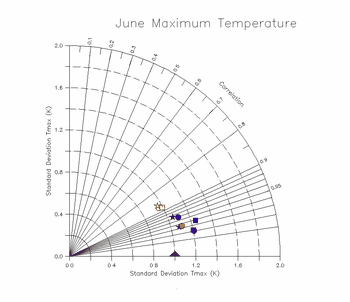

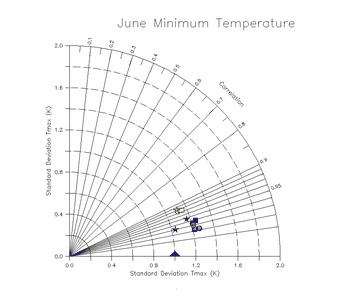

June
July

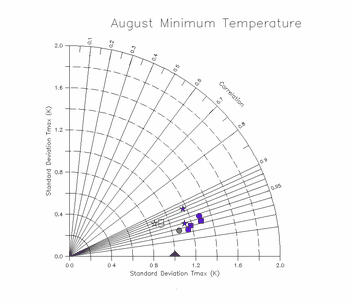

August

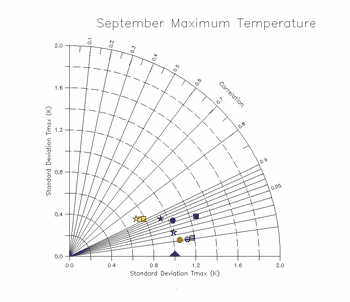

September

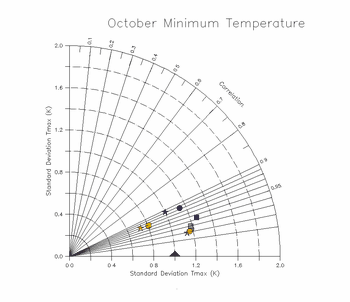

October
November

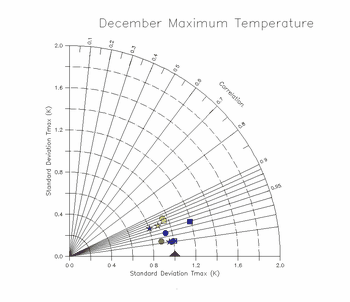

December
